The end dump trailer carriage adopts rear-dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader. The 35cbm dump truck trailer carriage is inclined at a certain angle, so that the cargo in the carriage is unloaded. The power of the dump truck trailer engine is used to complete the dumping mechanism.
We can customize the end dump trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers.

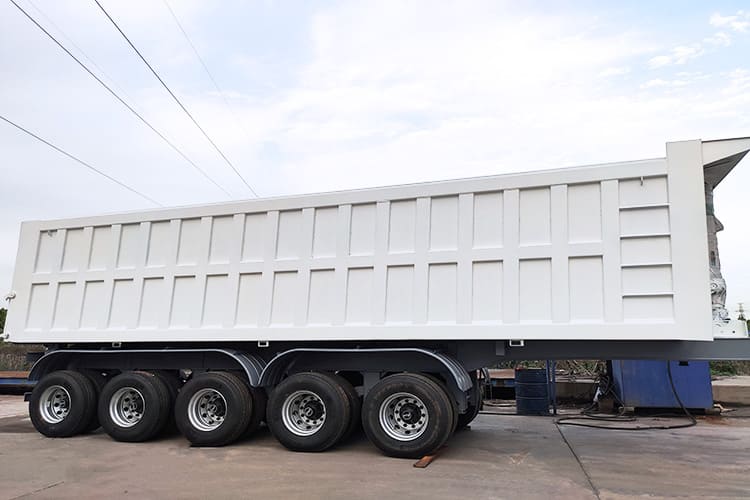

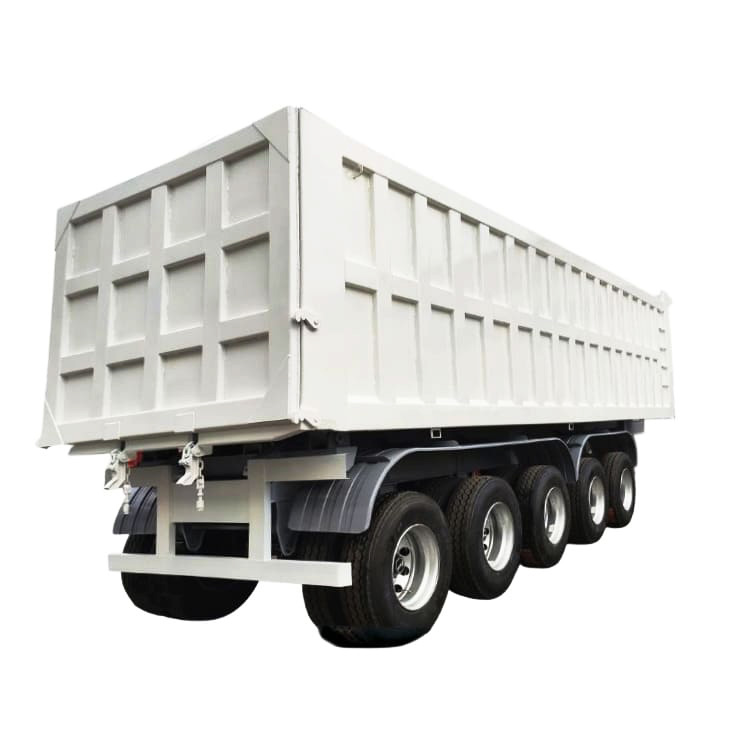

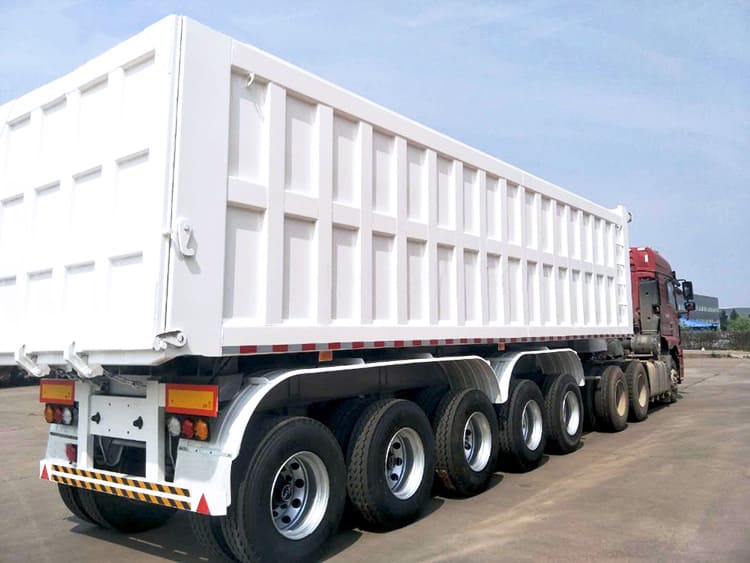

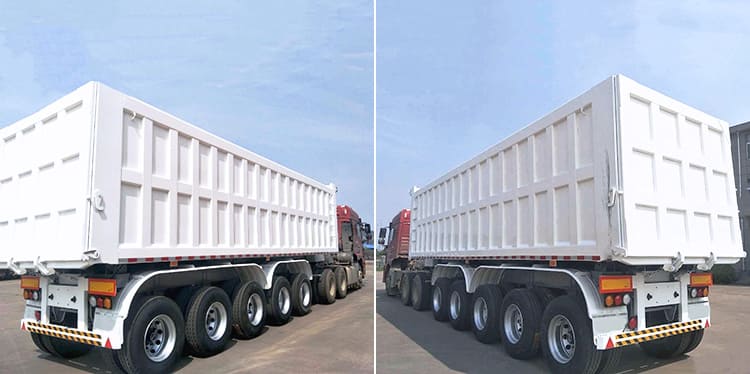

5 Axle 35cbm End Dump Truck Trailer for Sale Price
5 Axle 35cbm End Dump Truck Trailer for Sale Price
Dimension: 10845mmx2500mm x4000mm
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 5 axles, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20 or 9.00-20
Tire: 20 units
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Brake configuration
The dump truck trailer for sale has a heavy weight and long braking distance, especially after loading the cargo. However, in the current semi trailer tipper, there is no upgrade of the end dump trailer in this configuration, which makes thesafety performance unchanged. The brake pads of the 35cbm dump trailer have been greatly upgraded in this respect, and they are also equipped with an ABS anti-lock brake system, which makes the braking distance of the tipper semi trailers for sale shorter and the safety more guaranteed.
Tire pressure monitoring configuration
As the only part of the tipper semi trailer that contacts the ground, the tire pressure actually affects the safety of the 5 axle dump truck trailer to a large extent, but the dump trailer prices transportation generally has a long working cycle, and the driver will be very tired after working for a long time, so I will not pay attention to these details. The change of vehicle tire pressure will affect the fuel economy and safety of the dump semi trailer for sale. If the tire pressure is not kept within the normal range in time, it may cause an increase in fuel consumption or a tire burst.
The dump trailer driver can keep track of the tire pressure of the end dump trailer at any time, so as to adjust in time, so as to avoid the loss caused by the tire pressure being too high or too low, and driving is safer.
